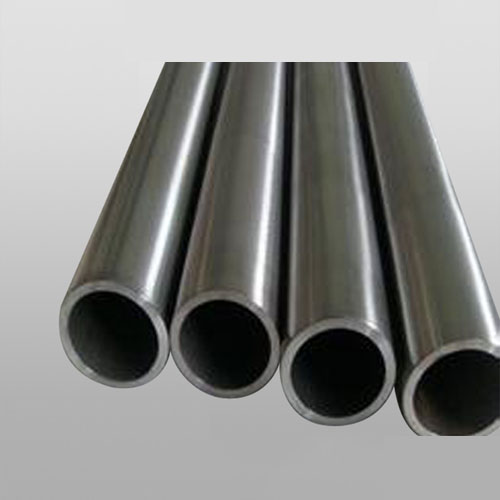

Tungsten Tube
Thickness: 2-30mm
Diameter: 30-500mm
Length: 10-1300mm
Appearance: silver grey metal luster
Density: Purity: W≥99.95%
Quality standard: GB/T 4187-1984 (tungsten rod) ASTM F288-90
Supply state: sintering or processing
Tungsten Tubing Applications
Tungsten tube is widely used in the thermocouple protection tube, sapphire crystal furnace and high temperature furnace, etc.
Tube Specifications
| Diameter(mm) | Wall Thickness(mm) | Length(mm) |
|---|---|---|
| 30~50 | 2~10 | <1300 |
| 50~100 | 3~15 | <1300 |
| 100~150 | 3~15 | <1300 |
| 150~200 | 5~20 | <1300 |
| 200~300 | 8~20 | <1300 |
| 300~400 | 8~30 | <1300 |
| 400~450 | 8~30 | <1300 |
| 450~500 | 8~30 | <1300 |
