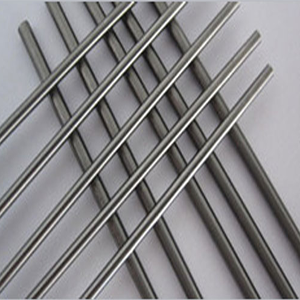

Tungsten Carbide Rod
Tungsten Carbide Rod - Precision Ground
Tungsten Carbide Rod Measurements
Tungsten Carbide Rod Item Number Breakdown
Tungsten Carbide Rod Sizing and Tolerances (mm)
| Item No. | Outer Diameter | Tolerance h6 | Length | Tol |
|---|---|---|---|---|
| CGR005310 | Φ0.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR010310 | Φ1.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR012310 | Φ1.2 | +0/-0.011 | 310 | -0/+0.01 |
| CGR016310 | Φ1.6 | +0/-0.011 | 310 | -0/+0.01 |
| CGR018310 | Φ1.8 | +0/-0.011 | 310 | -0/+0.01 |
| CGR023310 | Φ2.3 | +0/-0.011 | 310 | -0/+0.01 |
| CGR025310 | Φ2.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR030310 | Φ3.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR035310 | Φ3.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR040310 | Φ4.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR045310 | Φ4.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR050310 | Φ5.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR055310 | Φ5.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR060310 | Φ6.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR065310 | Φ6.5 | +0/-0.011 | 310 | -0/+0.01 |
| CR0700330 | Φ7.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR075310 | Φ7.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR080310 | Φ8.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR085310 | Φ8.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR090310 | Φ9.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR095310 | Φ9.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR100310 | Φ10.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR105310 | Φ10.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR110310 | Φ11.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR115310 | Φ11.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR120310 | Φ12.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR125310 | Φ12.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR130310 | Φ13.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR135310 | Φ13.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR140310 | Φ14.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR145310 | Φ14.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR150310 | Φ15.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR155310 | Φ15.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR160310 | Φ16.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR165310 | Φ16.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR170310 | Φ17.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR170310 | Φ17.5 | +0/-0.011 | 310 | -0/+0.01 |
| CGR180310 | Φ18.0 | +0/-0.011 | 310 | -0/+0.01 |
| CGR185310 | Φ18.5 | +0/-0.013 | 310 | -0/+0.01 |
| CGR190310 | Φ19.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR195310 | Φ19.5 | +0/-0.013 | 310 | -0/+0.01 |
| CGR200310 | Φ20.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR210310 | Φ21.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR220310 | Φ22.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR230310 | Φ23.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR240310 | Φ24.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR260310 | Φ26.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR270310 | Φ27.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR280310 | Φ28.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR290310 | Φ29.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR300310 | Φ30.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR310310 | Φ31.0 | +0/-0.013 | 310 | -0/+0.01 |
| CGR320310 | Φ32.0 | +0/-0.016 | 310 | -0/+0.01 |
| CGR330310 | Φ33.0 | +0/-0.016 | 310 | -0/+0.01 |
| CGR340310 | Φ34.0 | +0/-0.016 | 310 | -0/+0.01 |
| CGR350310 | Φ35.0 | +0/-0.016 | 310 | -0/+0.01 |
| CGR360310 | Φ36.0 | +0/-0.016 | 310 | -0/+0.01 |
| CGR370310 | Φ37.0 | +0/-0.016 | 310 | -0/+0.01 |
| CGR380310 | Φ38.0 | +0/-0.016 | 310 | -0/+0.01 |
| CGR390310 | Φ39.0 | +0/-0.016 | 310 | -0/+0.01 |
| CGR400310 | Φ40.0 | +0/-0.016 | 310 | -0/+0.01 |
| CGRXXXXXX | ... | ... | ... | ... |
Tungstend Carbide Rod With Center Hole
Tungsten Carbide Rod - Measurements
Single Hole Tungsten Carbide Rod Sizing and Tolerances (mm)
| Item No. | O/D | Tol | I/D | Tol | Max Concentricity | Length | Tol |
|---|---|---|---|---|---|---|---|
| CRO025003330 | Φ2.5 | -0/+0.5 | 0.3 | ±0.10 | 0.2 | 330 | -0/+5.0 |
| CRO040010330 | Φ4.0 | -0/+0.5 | 1.0 | ±0.15 | 0.2 | 330 | -0/+5.0 |
| CRO060010330 | Φ6.0 | -0/+0.5 | 1.0 | ±0.15 | 0.2 | 330 | -0/+5.0 |
| CRO080015330 | Φ8.0 | -0/+0.5 | 1.5 | ±0.15 | 0.2 | 330 | -0/+5.0 |
| CRO100020330 | Φ10.0 | -0/+0.5 | 2.0 | ±0.20 | 0.25 | 330 | -0/+5.0 |
| CRO120020330 | Φ12.0 | -0/+0.5 | 2.0 | ±0.20 | 0.25 | 330 | -0/+5.0 |
| CRO140020330 | Φ14.0 | -0/+0.5 | 2.0 | ±0.20 | 0.25 | 330 | -0/+5.0 |
| CRO160020330 | Φ16.0 | -0/+0.5 | 2.0 | ±0.20 | 0.25 | 330 | -0/+5.0 |
| CRO180030330 | Φ18.0 | -0/+0.5 | 3.0 | ±0.25 | 0.3 | 330 | -0/+5.0 |
| CRO200030330 | Φ20.0 | -0/+0.5 | 3.0 | ±0.25 | 0.3 | 330 | -0/+5.0 |
| CRO220030330 | Φ22.0 | -0/+0.5 | 3.0 | ±0.25 | 0.3 | 330 | -0/+5.0 |
| CRO240040330 | Φ24.0 | -0/+0.5 | 4.0 | ±0.30 | 0.3 | 330 | -0/+5.0 |
| CRO260050330 | Φ26.0 | -0/+0.5 | 5.0 | ±0.35 | 0.3 | 330 | -0/+5.0 |
| CRO280050330 | Φ28.0 | -0/+0.5 | 5.0 | ±0.35 | 0.3 | 330 | -0/+5.0 |
| CRO300050330 | Φ30.0 | -0/+0.5 | 5.0 | ±0.35 | 0.5 | 330 | -0/+5.0 |
| CRO310050330 | Φ31.0 | -0/+0.5 | 5.0 | ±0.35 | 0.5 | 330 | -0/+5.0 |
| CRO320050330 | Φ32.0 | -0/+0.5 | 5.0 | ±0.35 | 0.5 | 330 | -0/+5.0 |
| CROXXXXXXXX | ... | ... | ... | ... | ... | ... | ... |
Tungsten Carbide Rod With 2 Coolant Holes
Two Hole Tungsten Carbide Rod Sizing and Tolerances (mm)
| Item No. | O/D | Tol | I/D | Tol | TK | Tol | a |
|---|---|---|---|---|---|---|---|
| CRT042008330 | Φ4.2 | +0.3/－0 | 0.8 | ±0.1 | 1.8 | -0.15 | 0.1 |
| CRT052008330 | Φ5.2 | +0.3/－0 | 0.8 | ±0.1 | 2.0 | -0.15 | 0.13 |
| CRT063010330 | Φ6.3 | +0.3/－0 | 1.0 | ±0.1 | 3.0 | -0.2 | 0.15 |
| CRT073010330 | Φ7.3 | +0.3/－0 | 1.0 | ±0.15 | 3.5 | -0.2 | 0.15 |
| CRT083010330 | Φ8.3 | +0.3/－0 | 1.0 | ±0.15 | 4.0 | -0.3 | 0.15 |
| CRT093014330 | Φ9.3 | +0.3/－0 | 1.4 | ±0.15 | 4.0 | -0.3 | 0.2 |
| CRT103014330 | Φ10.3 | +0.3/－0 | 1.4 | ±0.15 | 5.0 | -0.3 | 0.2 |
| CRT113014330 | Φ11.3 | +0.4/－0 | 1.4 | ±0.15 | 5.0 | -0.3 | 0.28 |
| CRT1230175330 | Φ12.3 | +0.4/－0 | 1.75 | ±0.15 | 6.0 | -0.3 | 0.3 |
| CRT1330175330 | Φ13.3 | +0.4/－0 | 1.75 | ±0.15 | 6.0 | -0.3 | 0.34 |
| CRT1430175330 | Φ14.3 | +0.4/－0 | 1.75 | ±0.15 | 7.0 | -0.3 | 0.37 |
| CRT153020330 | Φ15.3 | +0.4/－0 | 2.0 | ±0.2 | 7.0 | -0.3 | 0.4 |
| CRT163020330 | Φ16.3 | +0.4/－0 | 2.0 | ±0.2 | 8.0 | -0.3 | 0.4 |
| CRT173020330 | Φ17.3 | +0.4/－0 | 2.0 | ±0.2 | 8.0 | -0.3 | 0.47 |
| CRT183020330 | Φ18.3 | +0.5/－0 | 2.0 | ±0.2 | 9.0 | -0.3 | 0.5 |
| CRT193020330 | Φ19.3 | +0.5/－0 | 2.0 | ±0.2 | 9.0 | -0.4 | 0.5 |
| CRT204025330 | Φ20.4 | +0.5/－0 | 2.5 | ±0.25 | 10.0 | -0.4 | 0.5 |
| CRT214025330 | Φ21.4 | +0.5/－0 | 2.5 | ±0.25 | 10.0 | -0.4 | 0.5 |
| CRT224025330 | Φ22.4 | +0.5/－0 | 2.5 | ±0.25 | 11.0 | -0.4 | 0.5 |
| CRT234025330 | Φ23.4 | +0.5/－0 | 2.5 | ±0.25 | 11.0 | -0.4 | 0.5 |
| CRT244030330 | Φ24.4 | +0.5/－0 | 3.0 | ±0.25 | 12.0 | -0.5 | 0.5 |
| CRT254030330 | Φ25.4 | +0.5/－0 | 3.0 | ±0.25 | 12.0 | -0.5 | 0.5 |
| CRT264030330 | Φ26.4 | +0.5/－0 | 3.0 | ±0.25 | 13.0 | -0.5 | 0.5 |
| CRT284030330 | Φ28.4 | +0.5/－0 | 3.0 | ±0.25 | 14.0 | -0.5 | 0.5 |
| CRT304030330 | Φ30.4 | +0.5/－0 | 3.0 | ±0.25 | 14.0 | -0.5 | 0.5 |
| CRT324030330 | Φ32.4 | +0.5/－0 | 3.0 | ±0.25 | 14.0 | -0.5 | 0.5 |
| CRT344030330 | Φ34.4 | +0.5/－0 | 3.0 | ±0.25 | 14.0 | -0.5 | 0.5 |
| CRTXXXXXXXXX | ... | ... | ... | ... | ... | ... | ... |
Unground Tungsten Carbide Rod
| Item No. | O/D | Tol | Max Run-out | Length | Tol |
|---|---|---|---|---|---|
| CR0050330 | Φ0.5 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0100330 | Φ1.0 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0120330 | Φ1.2 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0160330 | Φ1.6 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0180330 | Φ1.8 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0230330 | Φ2.3 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0250330 | Φ2.5 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0300330 | Φ3.0 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0350330 | Φ3.5 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0400330 | Φ4.0 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0450330 | Φ4.5 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0500330 | Φ5.0 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0550330 | Φ5.5 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0600330 | Φ6.0 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0650330 | Φ6.5 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0700330 | Φ7.0 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0750330 | Φ7.5 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR08050330 | Φ8.0 | +0.20/+0.45 | 0.2 | 330 | -0/+5.0 |
| CR0850330 | Φ8.5 | +0.20/+0.45 | 0.25 | 330 | -0/+5.0 |
| CR0900330 | Φ9.0 | +0.20/+0.45 | 0.25 | 330 | -0/+5.0 |
| CR0950330 | Φ9.5 | +0.20/+0.45 | 0.25 | 330 | -0/+5.0 |
| CR1000330 | Φ10.0 | +0.20/+0.45 | 0.25 | 330 | -0/+5.0 |
| CR1050330 | Φ10.5 | +0.20/+0.45 | 0.25 | 330 | -0/+5.0 |
| CR1100330 | Φ11.0 | +0.20/+0.45 | 0.25 | 330 | -0/+5.0 |
| CR1150330 | Φ11.5 | +0.20/+0.45 | 0.25 | 330 | -0/+5.0 |
| CR1200330 | Φ12.0 | +0.20/+0.45 | 0.25 | 330 | -0/+5.0 |
| CR1250330 | Φ12.5 | +0.20/+0.60 | 0.25 | 330 | -0/+5.0 |
| CR1300330 | Φ13.0 | +0.20/+0.60 | 0.25 | 330 | -0/+5.0 |
| CR1350330 | Φ13.5 | +0.20/+0.60 | 0.25 | 330 | -0/+5.0 |
| CR1400330 | Φ14.0 | +0.20/+0.60 | 0.25 | 330 | -0/+5.0 |
| CR1450330 | Φ14.5 | +0.20/+0.60 | 0.25 | 330 | -0/+5.0 |
| CR1500330 | Φ15.0 | +0.20/+0.60 | 0.25 | 330 | -0/+5.0 |
| CR1550330 | Φ15.5 | +0.20/+0.60 | 0.25 | 330 | -0/+5.0 |
| CR1600330 | Φ16.0 | +0.20/+0.60 | 0.25 | 330 | -0/+5.0 |
| CR1650330 | Φ16.5 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR1700330 | Φ17.0 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR1750330 | Φ17.5 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR1800330 | Φ18.0 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR1850330 | Φ18.5 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR1900330 | Φ19.0 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR1950330 | Φ19.5 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR2000330 | Φ20.0 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR2100330 | Φ21.0 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR2200330 | Φ22.0 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR2300330 | Φ23.0 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR2400330 | Φ24.0 | +0.20/+0.60 | 0.30 | 330 | -0/+5.0 |
| CR2600330 | Φ26.0 | +0.20/+0.60 | 0.35 | 330 | -0/+5.0 |
| CR2700330 | Φ27.0 | +0.20/+0.60 | 0.35 | 330 | -0/+5.0 |
| CR2800330 | Φ28.0 | +0.20/+0.60 | 0.35 | 330 | -0/+5.0 |
| CR2900330 | Φ29.0 | +0.20/+0.60 | 0.35 | 330 | -0/+5.0 |
| CR3000330 | Φ30.0 | +0.20/+0.60 | 0.35 | 330 | -0/+5.0 |
| CR3100330 | Φ31.0 | +0.20/+0.60 | 0.50 | 330 | -0/+5.0 |
| CR3200330 | Φ32.0 | +0.20/+0.60 | 0.50 | 330 | -0/+5.0 |
| CR3300330 | Φ33.0 | +0.20/+0.60 | 0.50 | 330 | -0/+5.0 |
| CR3400330 | Φ34.0 | +0.20/+0.60 | 0.50 | 330 | -0/+5.0 |
| CR3500330 | Φ35.0 | +0.20/+0.60 | 0.50 | 330 | -0/+5.0 |
| CR3600330 | Φ36.0 | +0.20/+0.60 | 0.50 | 330 | -0/+5.0 |
| CR3700330 | Φ37.0 | +0.20/+0.60 | 0.50 | 330 | -0/+5.0 |
| CR3800330 | Φ38.0 | +0.20/+0.60 | 0.50 | 330 | -0/+5.0 |
| CR3900330 | Φ39.0 | +0.20/+0.60 | 0.50 | 330 | -0/+5.0 |
| CR4000330 | Φ40.0 | +0.20/+0.60 | 0.50 | 330 | -0/+5.0 |
| CRXXXXXXX | ... | ... | ... | ... | ... |
