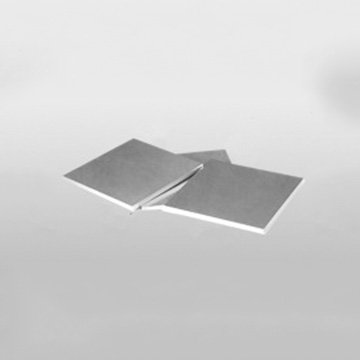

Tungsten Carbide Plate
High density, best wear & impact resistance, which lead to long life service.
All plates must be inspected strictly with ultrasonics and only those that haven't any defect including porosity, cracking, scraping so that can be shipped out.
Tungsten Carbide Plate Sizing & Tolerances(mm)
| Item No. | L | L Tol | W | W Tol | S | Tol |
|---|---|---|---|---|---|---|
| CP20020010~45 | 200 | +2.0 | 200 | +2.0 | 10~45 | +1.0~1.8 |
| CP15015011~70 | 150 | +1.5 | 150 | +1.5 | 11~70 | +1.0~+2.0 |
| CP15015002~10 | 150 | +1.5 | 150 | +1.5 | 2.0~10 | +0.5~+0.9 |
| CP15013010~45 | 150 | +1.5 | 130 | +1.5 | 10~45 | +1.0~+1.8 |
| CP10510510~70 | 105 | +1.5 | 105 | +1.5 | 10~70 | +1.0~+2.0 |
| CP15010010~45 | 150 | +1.5 | 100 | +1.5 | 10~45 | +1.0~+1.8 |
| CP15008010~45 | 150 | +1.5 | 80 | +1.5 | 10~45 | +1.0~+1.8 |
| CP12012010~45 | 120 | +1.5 | 120 | +1.5 | 10~45 | +1.0~+1.8 |
| CP10010010~50 | 100 | +1.5 | 100 | +1.5 | 10~50 | +1.0~+1.8 |
| CP08005510~50 | 80 | +1.5 | 50 | +1.0 | 10~50 | +1.0~+1.8 |
| CP08004010~35 | 80 | +1.5 | 40 | +1.0 | 10~35 | +1.0~+2.0 |
| CP07003505~30 | 70 | +1.5 | 35 | +1.0 | 05~30 | +0.8~+1.0 |
| CP04502505~20 | 45 | +1.0 | 25 | +0.8 | 05~20 | +0.8~+1.0 |
| CP03502005~15 | 35 | +1.0 | 20 | +0.8 | 05~15 | +0.8~+1.0 |
| CP02002005~20 | 20 | +0.8 | 20 | +0.8 | 05~20 | +0.8~+1.0 |
| CP01801305~10 | 18 | +0.8 | 13 | +0.6 | 05~10 | +0.5~+0.8 |
